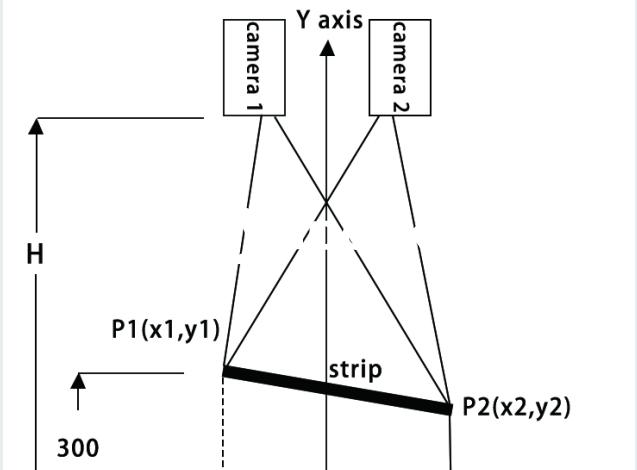

The width measuring system adopts dual industrial CCD cameras to proceed the online measurement of the steel plate on the roller bed by using the principle of stereo vision technology, and combines the high-speed digital signal processing technology and programming software to process the signals accordingly, and displays the relevant data and measurement curves, so that we can realize precise control of the steelmaking process during production.

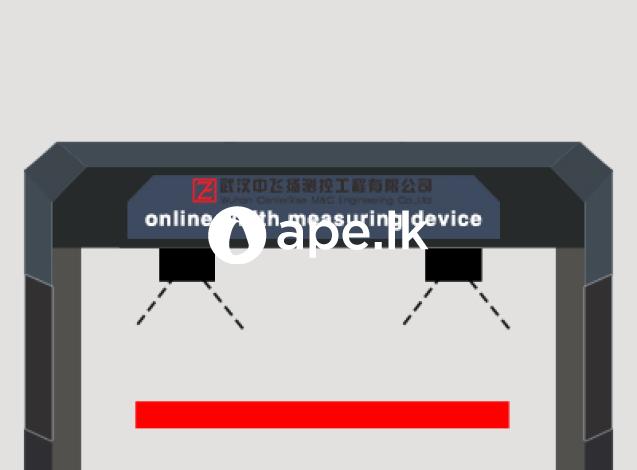

The system realizes the width measurement of the slab through the line scan cameras installed on both sides of the gantry slab, and the measurement data is transmitted to the host system through the optical fiber. Accurately calculate the actual width of the slab and the width deviation of the slab from the data collected by the linear array CCD camera with up to 8K pixels and the relative position of the double linear array CCD cameras installed on site. Then we can the actual parameter data and allowable deviation parameters of the slab by using the host system software part, so as to realize the alarm control.



The features of the system

It can effectively identify and compensate the beating, inclination, side deflection and profile of the tested plate;

Three-layer high temperature protection of air-cooled, water-cooled and outer interlayer asbestos;

Moving image linear noise correction technology, electronic exposure technology;

With shock-absorbing installation design to reduce measurement errors;

The software has self-diagnosis function;

Full digital detection, automatic calibration system;

Unique optical vibration compensation technology;

High measurement accuracy and fast response;

Using optical fiber signal transmission;



The technical parameters of the system

Measuring distance: 2m-10m (according to the on-site environment)

Measuring range: 0.05m-40m

Resolution: ±0.01mm

Repeatability accuracy: 0.05mm

Measurement output frequency: 30Hz (adjustable)

Laser class: 2 (IEC60825-1:2014)

Protection class: IP65

Camera pixel: 8K

The measurement range of temperature : 0℃-1200℃

Working temperature: -20℃-60℃
